Klueber volumetric greasing system
Manual volumetric grease dispensing station with integrated mini-PLC for objectification control, dispensing and quick tool-free setup system.
Volumetric and objectified dispensing of Klueber grease on double O-ring seat, quick-change poka-yoke poses.
Characteristics
CASE STUDY
Manual Volumetric Grease Dispensing Station with Mini-PLC
A company specializing in the production of industrial components needed a manual station for volumetric dispensing of grease, equipped with an integrated control system to ensure dispensing accuracy and ease of setup. The system had to be able to dispense Klueber grease on double O-ring seats, with a quick-change poka-yoke placement system, and integrate a mini-PLC for objectification and dispensing control.
01
Solution Provided
To meet the customer’s needs, we designed a highly efficient and versatile manual volumetric dispensing station, integrated with a mini-PLC for advanced control and a quick setup system.Â
Main Components
DAV 300 Volumetric Valves
DAV 300 volumetric valves have been selected to ensure precise and uniform dispensing of grease, perfectly adapting to customer specifications.
PP25 Pressure Plate Pump
The PP25 pump ensures a constant and controlled flow of Klueber grease, optimizing dispensing on double o-ring seats.

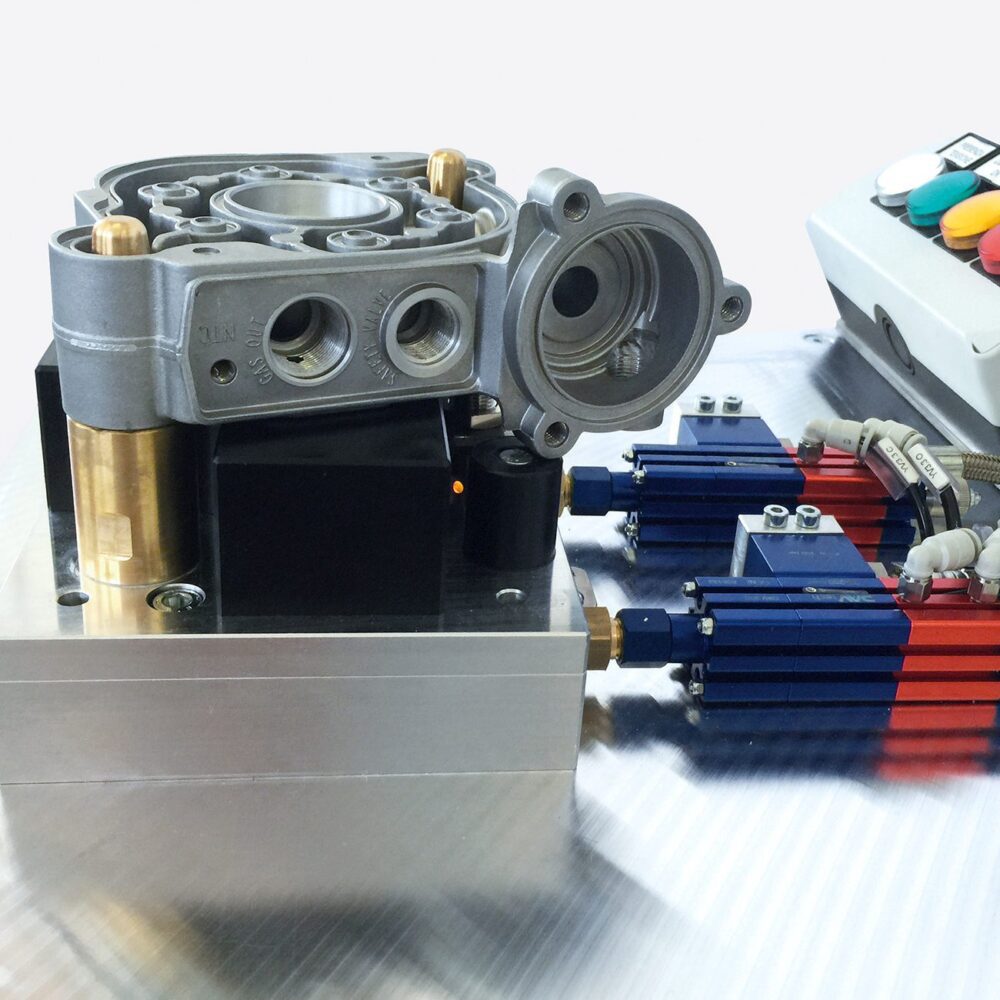

Customized and Sensorized Fixtures
The custom fixture has been designed to support and position components precisely, while the integrated sensors provide real-time feedback on the dispensing process.
Advanced Features
Integrated Mini-PLC
The integrated mini-PLC allows detailed control of the dispensing process, with the possibility of monitoring and objectifying the dispensing. This system ensures precision and reliability in dispensing.
Tool-Free Quick Setup System
The Quick Setup System allows you to change configurations without the use of tools, reducing downtime and increasing operational efficiency.
Poka-Yoke Placements
The quick-change poka-yoke laying system ensures that grease is applied correctly, reducing the risk of errors and improving the quality of the final product.
02
Results and Benefits
The manual volumetric dispensing station responded excellently to the customer’s needs, offering a precise and easily adaptable solution. The integration of the mini-PLC has improved the control and traceability of the dispensing process, while the rapid setup system and customized fixtures have optimized efficiency and operational flexibility. The combination of the DAV 300 valves and the PP25 pump ensured a uniform and trouble-free dispensing of Klueber grease.Â
In summary, the designed system has not only improved the quality and accuracy of the greasing process, but has also increased efficiency and ease of use, effectively responding to specific customer needs.Â
