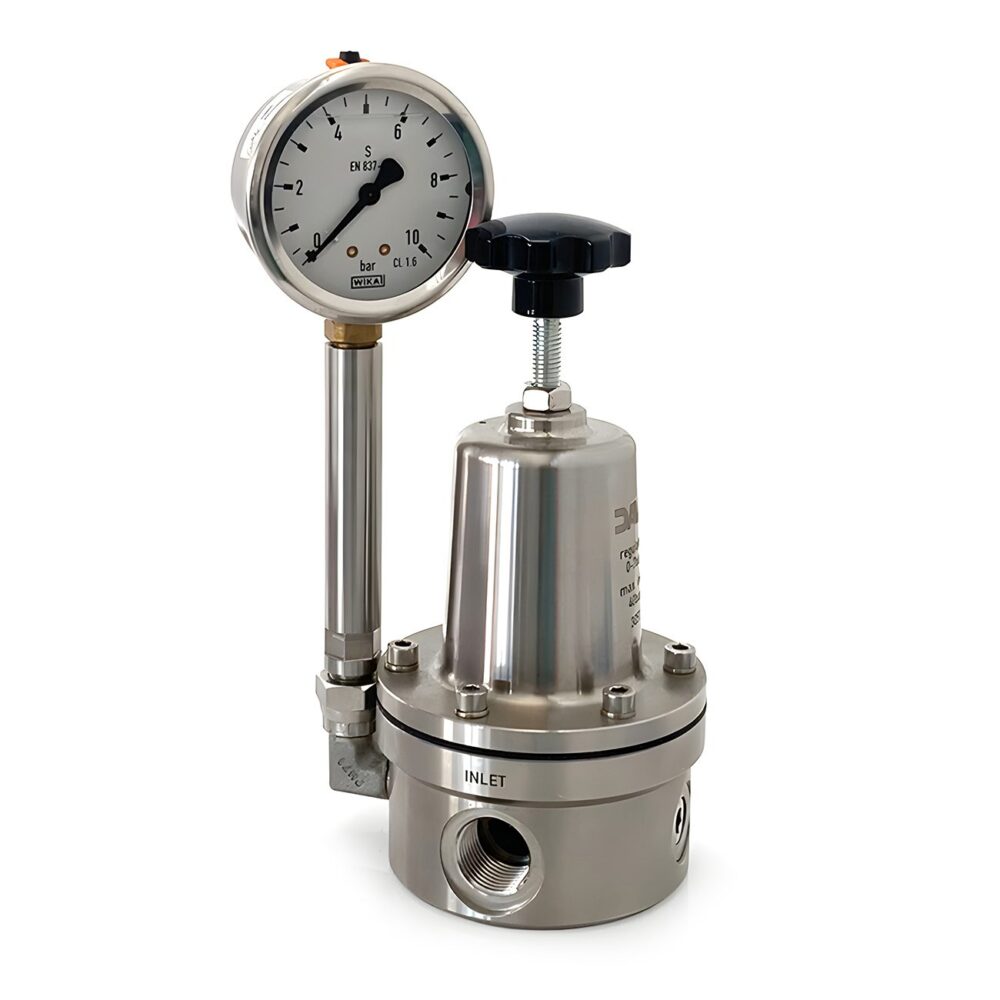

The DAT 096 pressure regulator allows precise pressure adjustment in a fluid circuit.
On the top part, there is the pressure adjustment system.
By screwing, a spring is compressed, which activates a rod in the lower part of the device that, in turn, pushes a ceramic ball out of its sealing seat. This allows the material flow to be managed and dampens any pressure spikes.
The DAT 096 pressure regulator is used for the precise regulation of fluid pressure.
The standard regulation range goes from 0 to 7 bar.
This regulator is made of stainless steel, making it suitable for most fluids such as glues, adhesives, resins, etc.
The diaphragm is made of Viton® and PTFE.
