• No need for transfers: The original drum is completely emptied
• Simple, robust, and equipped with a trolley for easy movement
• Custom pressing plate: Designed to match the drum dimensions
• Optional dual-level sensor available upon request
• Pressure regulators with gauge: For precise pressure control of both the pump and the lifting cylinder.

OPERATION
The PP25 follower plate pump consists of a base with a pneumatic lifter that raises and lowers the pump and pressing plate.
All movements are controlled by a lever valve located on the upper part of the pump. The pneumatic pump has a 38:1 compression ratio, and once supplied with compressed air, it can suction and pressurize even ultra-high viscosity products.
The pressing plate is custom-made to fit the drum dimensions, preventing leakage, while alignment guides and straps ensure quick and easy drum replacement.
Its extremely robust structure makes it suitable for use even in the most demanding environments, and the trolley-mounted design allows for easy mobility when needed.

FIELDS OF APPLICATION







3D Models

Manual File

Download the manual

Datasheet File

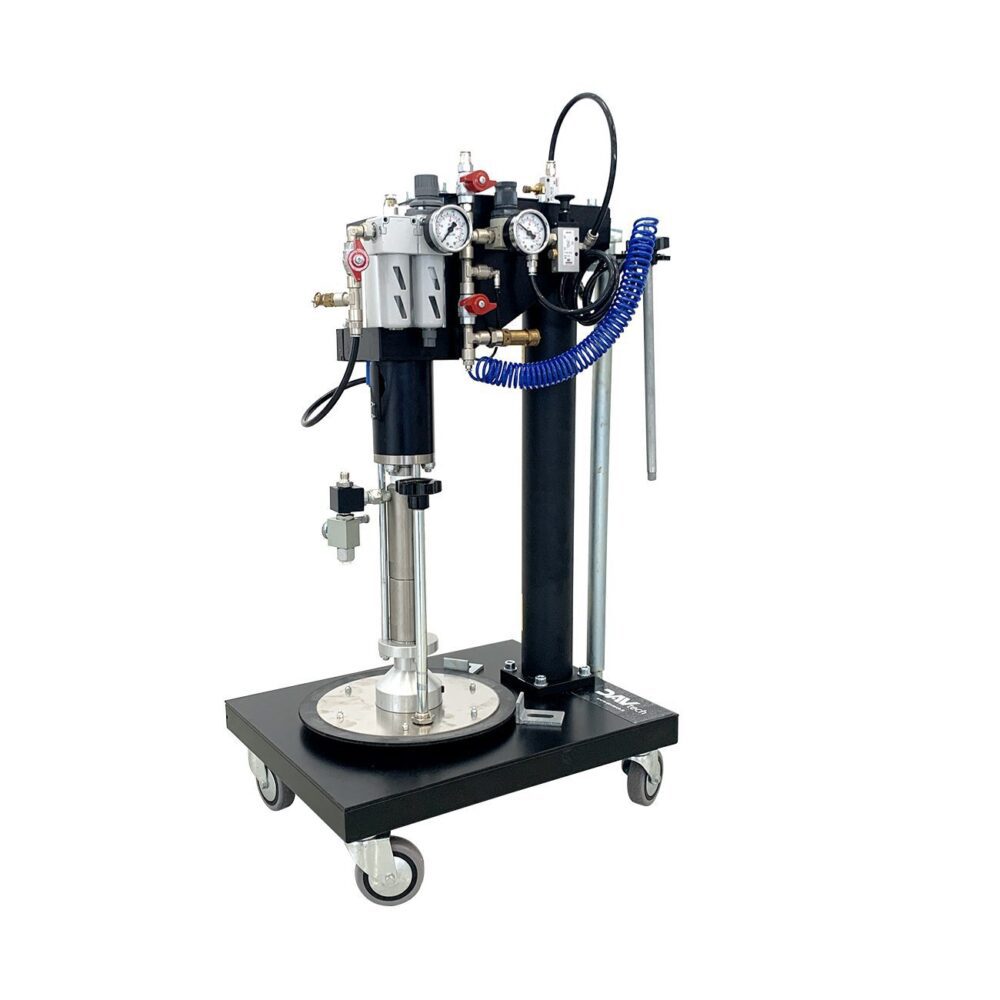

Follower plate pump PP-25

The PP25 follower plate pump is used to pressurize adhesives, sealants or lubricants contained in drums from 5 to 25 kg. The pressing plate is sized on the format of the drum to be processed and guarantees complete consumption of the same, avoiding cavitation phenomena of the pump.

• No need for transfers: The original drum is completely emptied
• Simple, robust, and equipped with a trolley for easy movement
• Custom pressing plate: Designed to match the drum dimensions
• Optional dual-level sensor available upon request
• Pressure regulators with gauge: For precise pressure control of both the pump and the lifting cylinder.

OPERATION
The PP25 follower plate pump consists of a base with a pneumatic lifter that raises and lowers the pump and pressing plate.
All movements are controlled by a lever valve located on the upper part of the pump. The pneumatic pump has a 38:1 compression ratio, and once supplied with compressed air, it can suction and pressurize even ultra-high viscosity products.
The pressing plate is custom-made to fit the drum dimensions, preventing leakage, while alignment guides and straps ensure quick and easy drum replacement.
Its extremely robust structure makes it suitable for use even in the most demanding environments, and the trolley-mounted design allows for easy mobility when needed.

FIELDS OF APPLICATION







3D Models

Manual File

Download the manual

Datasheet File
