• No need for transfers: The original drum is completely emptied
• Custom pressing plate: Designed to match the drum dimensions
• Optional low-level alarm (sound or electric) and pump lock device available upon request
• Pressure regulators with gauge: For precise pressure control of both the pump and lifting cylinders
• Vent pad: Easily removes air above the product level

OPERATION

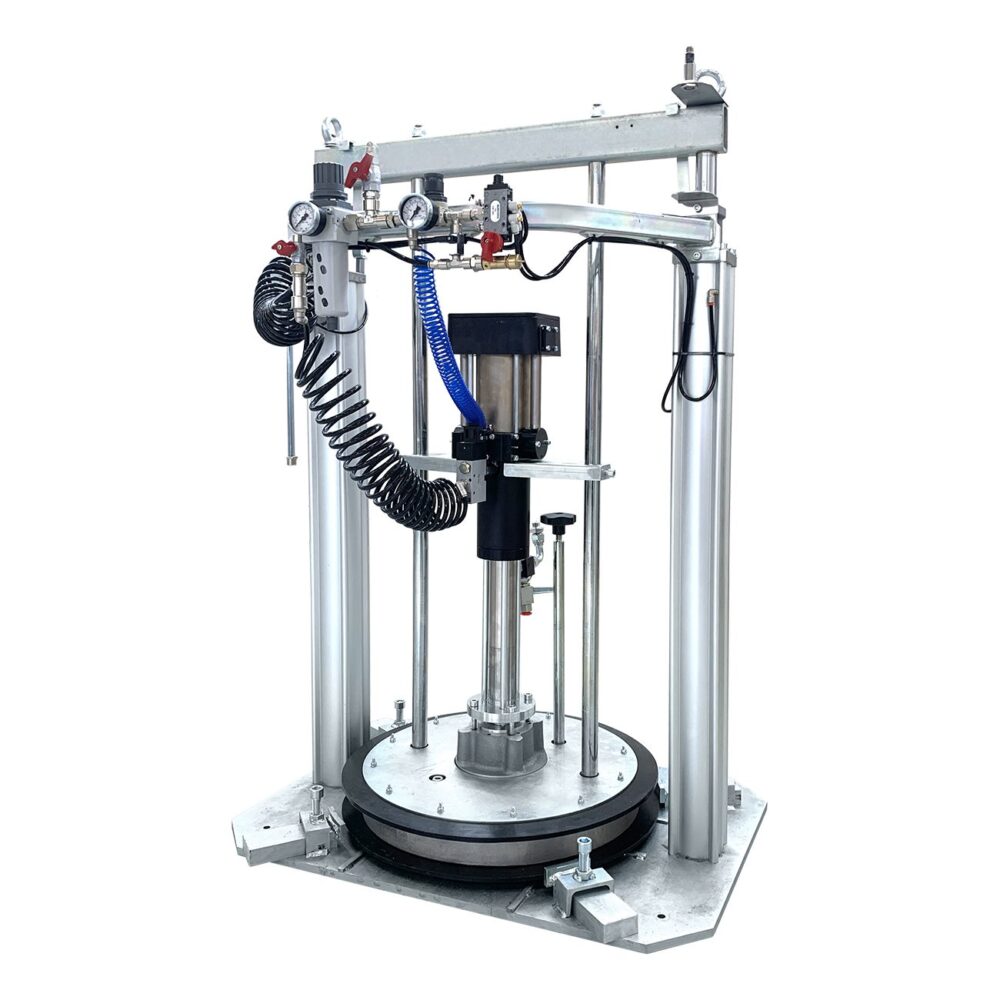

The PP200 follower plate pump consists of a base with a dual pneumatic lifter that raises and lowers the pump and pressing plate. All movements are controlled by a lever valve located on the upper part of the pump.
The pneumatic pump has a 30:1 compression ratio, and once supplied with compressed air, it can suction and pressurize even ultra-high viscosity products, contained in drums weighing up to 200 kg.
The pressing plate is custom-made to fit the drum dimensions, preventing leakage, while alignment guides ensure quick and easy drum replacement.
Its extremely robust structure makes it suitable for use even in the most demanding environments.

FIELDS OF APPLICATION








3D Models

Manual File

Download the manual

Datasheet File

Follower plate pump PP-200

The PP200 follower plate pump allows you to feed fluids starting from 200 kg drums. The double-membrane pressing plate prevents leakage. The PP200 pump is ideal for systems with high consumption or as a basis for the construction of a central supply system.

• No need for transfers: The original drum is completely emptied
• Custom pressing plate: Designed to match the drum dimensions
• Optional low-level alarm (sound or electric) and pump lock device available upon request
• Pressure regulators with gauge: For precise pressure control of both the pump and lifting cylinders
• Vent pad: Easily removes air above the product level

OPERATION
The PP200 follower plate pump consists of a base with a dual pneumatic lifter that raises and lowers the pump and pressing plate. All movements are controlled by a lever valve located on the upper part of the pump.
The pneumatic pump has a 30:1 compression ratio, and once supplied with compressed air, it can suction and pressurize even ultra-high viscosity products, contained in drums weighing up to 200 kg.
The pressing plate is custom-made to fit the drum dimensions, preventing leakage, while alignment guides ensure quick and easy drum replacement.
Its extremely robust structure makes it suitable for use even in the most demanding environments.
